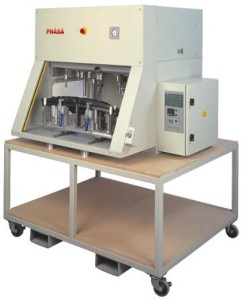

Phasa 20/40E

Phasa_20_40_E_stor

Erbjuder samtidig varmluftsnitning av enstaka eller upp till ca. 200 st nitpunkter inom ett detaljmått på ca. 200 x 800 150 mm. Ideal för större detaljer med flera nitpunkter.

The 20/40E is particularly suited to the processing of longer narrow parts or handed pairs of components.

Lightguard protection, mobile stand and interchangeable tooling are all standard features on the 20/40E with ease of operation, production mobility and flexibility.

The machine will process all common thermoplastics – with or without filling materials.



Beskrivning:

  • General Construction – Modular design with cast ground machine base – mounting plates.
  • Electrical System – 220/240V a.c. 50/60 Hz – providing 24V d.c. control supply.
  • Electrical Protection – Via RCCB and MCB overload trips.
  • Pneumatic System – SMC valves and air cylinders with Origa rodless index cylinder.
  • Temperature Control – Omron E5C3 Temperature control – sensing through K thermocouples.
  • Heating System – 3,000W. energized by 28amp SSR – pulsed through Temperature Controller.
  • Process Control – Siemens.
  • Operator Interface – Siemens.
  • Guard System – Light Guard operator loading bay protection & total enclosure of process cell.
  • Documentation – Comprehensive instruction and maintenance manual.

Tekniska data:

  • Standard processarea 200 x 800 x 150 mm djup
  • Max antal nitpunkter 200 positioner
  • Mått (Dj.x B x H) 1.250 x 1.480 x 1.875 mm
  • Nominal Cycle Time 20 seconds
  • Basic Tool Change Time 5 minutes
  • Nett Weight (excluding tooling) 300 kg.
  • Air (subject to product & output) 6 cfm (3 dm3/s) @ 6.0 bar
  • Electricity 3,000 watt @ 240 V a.c.

Extrautrustning:

  • Integrering med automatiserad i- och urplockning

Tillbehör:

  • Fixturverktyg
  • Nedhållare
  • Givare för kontroll av detalj, läge, färg etc.
