Phasa 40/80R

Phasa_40_80R_stor

Erbjuder samtidig varmluftsnitning av enstaka eller upp till ca. 100 st nitpunkter inom ett detaljmått 600 x 1.000 x 75 mm. Ideal för större detaljer med flera nitpunkter.

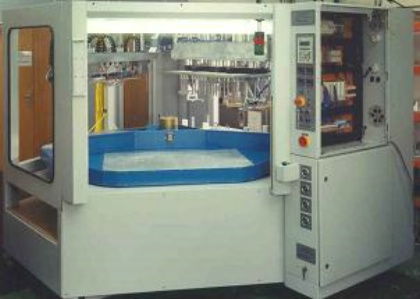

The 40/80R three station rotary machine used mainly in the assembly of larger, high volume components.

Built for flow line production once loaded processing and unloading is automatic. The 40/80R is a dedicated free standing machine.

The machine will process all common thermoplastics – with or without filling materials.



Beskrivning:

  • General Construction – Welded steel box section frame, cast ground machine base.
  • Electrical System – 3 x 400V a.c. 50/60 Hz – providing 24V d.c. control supply.
  • Electrical Protection – Via RCCB and MCB overload trips.
  • Pneumatic System – SMC valves and air cylinders with Origa rodless index cylinder.
  • Temperature Control – Omron E5C3 Temperature control – sensing through K thermocouples.
  • Heating System –  3,000W. energized by 28amp SSR – pulsed through Temperature Controller.
  • Process Control – Siemens.
  • Operator Interface – Siemens.
  • Guard System – Light Guard operator loading bay protection & total enclosure of process cell.
  • Documentation – Comprehensive instruction and maintenance manual.

Tekniska data:

  •  Standard processarea 600 x 1.000 x 75 mm,djup
  • Max antal nitpunkter 200 positioner
  • Mått (Dj.x B x H) 2.300 x 2.300 x 1.875 mm
  • Nominal Cycle Time 15 seconds
  • Basic Tool Change Time 15 minutes
  • Nett Weight (excluding tooling) 2.000 kg.
  • Air (subject to product & output) 12 cfm (6 dm3/s) @ 6.0 bar
  • Electricity 3,000 watt @ 240 V a.c.

Extrautrustning:

  • Integrering med automatiserad i- och urplockning

Tillbehör:

  • Fixturverktyg
  • Nedhållare
  • Givare för kontroll av detalj, läge, färg etc.
