FG5001

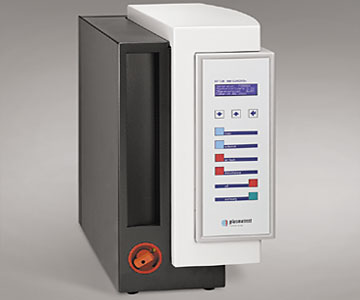

Openair® FG5001Plasma Generator: basic unit for plasma pretreatment

The FG5001 Plasma Generator is the basic unit of the Plasmatreat generator 5000 series. It is distinguished by its particularly compact design – allowing space-saving under-counter integration.

For the first time, a constant voltage source is realized in this class. The series is equipped with state-of-the-art IGBT semiconductor amplifiers and combines highest performance with precise plasma power regulation and control functions. The FG5001 Plasma Generator can optionally operate up to two plasma nozzles.

Typical applications

  • Integration in complete systems, such as pad printing systems
  • Simple applications in production areas with low contamination
  • Plasmatreat laboratory systems, laboratory tables with ontinuously adjustable linear unit and single plasma nozzles, stationary and rotating
  • Loan systems to test the Openair® process

Main features of the FG5001Plasma Generator

  • System control and power control using integrated micro-controller
  • Power output: 1000 VA for activating a maximum of two plasma nozzles
  • Voltage supply of 100 -240 VA
  • Operating temperature range: 0-35 degrees Celsius
  • Operational data, such as voltage, power, frequency, error and status messages, in various languages.
