Phasa 40/40

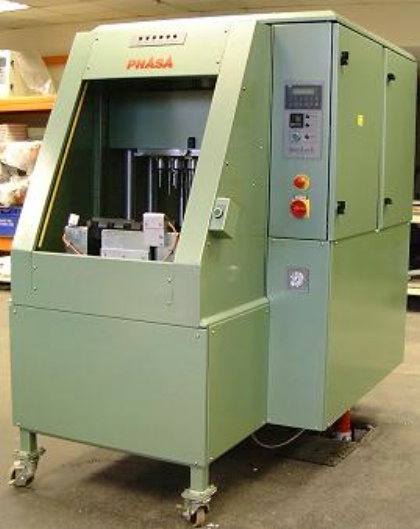

Phasa_40_40_stor

Erbjuder samtidig varmluftsnitning av enstaka eller upp till ca. 200 st nitpunkter inom ett detaljmått på ca. 500 x 400 x 125 mm. Ideal för större detaljer med flera nitpunkter.

The 40/40 suitable for multi-staking applications is used extensively in the assembly of computer cases, loudspeaker enclosures and automotive trim.

Free-standing, lightguard protection and interchangeable tooling are all standard features on the 40/40 making for ease of operation, production mobility and flexibility.

The machine will process all common thermoplastics – with or without filling materials.



Beskrivning:

  • General Construction – Welded steel box section frame, cast ground machine base
  • Electrical System – 3 x 400V a.c. 50/60 Hz – providing 24V d.c. control supply.
  • Electrical Protection – Via RCCB and MCB overload trips.
  • Pneumatic System – SMC valves and air cylinders with Origa rodless index cylinder.
  • Temperature Control – Omron E5C3 Temperature control – sensing through K thermocouples.
  • Heating System – 2 x 3,000W. energized by 28amp SSR – pulsed through Temperature Controller.
  • Process Control – Siemens.
  • Operator Interface – Siemens.
  • Guard System – Light Guard operator loading bay protection & total enclosure of process cell.
  • Documentation – Comprehensive instruction and maintenance manual.

 Tekniska data:

  •  Standard processarea 500 x 400 x125 mm djup
  • Max antal nitpunkter 200 positioner
  • Mått (Dj.x B x H) 1.250 x 1.480 x 1.875 mm
  • Nominal Cycle Time 20 seconds
  • Basic Tool Change Time 10 minutes
  • Nett Weight (excluding tooling) 750 kg.
  • Air (subject to product & output) 6 cfm (3 dm3/s) @ 6.0 bar
  • Electricity 2 x 3,000 watt @ 240 V a.c.

Extrautrustning:

  •  Integrering med automatiserad i- och urplockning



Tillbehör:

  • Fixturverktyg
  • Nedhållare
  • Givare för kontroll av detalj, läge, färg etc.
