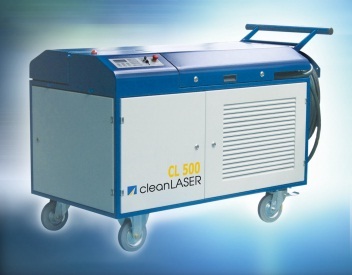

Lasersystem CL 500

Our best selling mid power laser

The CL 500 is one of our most sold laser systems. Great power in a small package.

Available as air or water cooled laser system, mobile or stationary and with many optics to choose from.

This powerful laser is diode-pumped and q-switched with a maximum power output of >450 kW per pulse. The system is fully digitally controlled and is very user friendly. All laser parameters are also controllable from the optic. An internal cooling unit allows for highest flexibility and mobility.

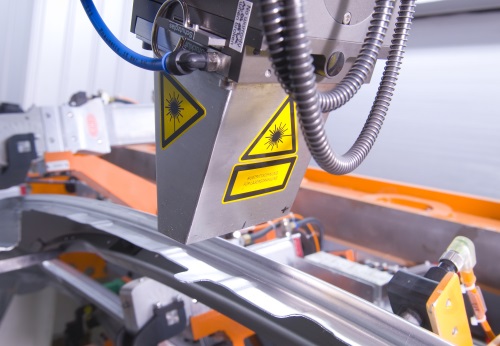

The CL 500 laser system can be used to remove coatings (completely or selective), clean large surfaces either manually or in automated systems or remove tough contaminants. The 500 Watt laser is being used by automotive manufacturers to prepare surfaces prior to welding, fully integrated into the manufacturing process.



Technical data
Average laser power: 500 Watt
Length x Height x Width: 116 x 75 x 155 mm
Weight: 250 kg
Laserclass: 4
Electrical requirement: 3×400 V



Included:

  • 500W laser power
  • Q-switched
  • Low maintenance laser system
  • Air or water cooled
  • 10 m fiber
  • Flat top beam profile
  • OSH50 optic or cleanCUBE 15H/A

Optional:

  • Up to 50 m fiber
  • Beam switch to add 2nd optic
  • Various 1-D or 2-D optics available
  • Remote diagnostic
  • Robotic interface
  • Touch screen HMI
