Lågtrycksplasma

Low Pressure Plasma offers many versatile possibilities for surface modification. The fine cleaning of components, the plasma activation of plastic parts, the etching of PTFE or silicon and the coating of plastic parts with PTFE-like layers are just a few of the applications. The low pressure plasma is used in the most diverse ranges, where a better adhesion between materials or a change in surface property is desired.

With the low pressure plasma technology gas in the vacuum becomes excited by energy input.  High energy ions and electrons are developed along with other reactive particles, which form the plasma and surfaces can be changed effectively. There are three different low pressure plasma effects:

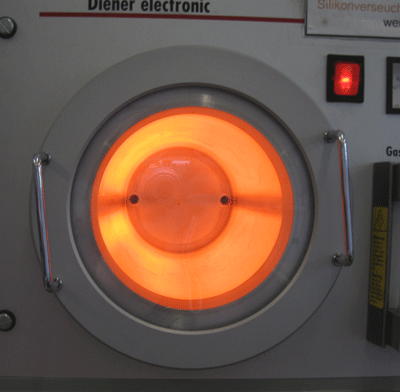

plasma_rot

Microsandblasting: The surface is cleared away by ion bombardment.

Chemical Reaction: The ionized gas reacts chemically with the surface.

UV-Radiation: The UV-Radiation breaks open chains of carbon compounds.
Variation of the process parameters, such as pressure, power output, process time, and gas flow together can change the impact of the plasma.

Thus several effects can be obtained in a one process step.

Text_2

Läs mer »Zepto – low-cost

2,6 litres laboratory low cost plasma cleaner ZEPTO with manual, PC and PCCE control
Text_2

Läs mer »Atto- low-cost

10,5 litres laboratory low cost plasma cleaner ATTO with manual, PC and PCCE control
Text_2

Läs mer »Femto

The FEMTO plasma cleaner are available in many different configurations. The following is an overview of the most common plasma cleaner.
Text_2

Läs mer »Pico

The PICO plasma cleaner are available in many different configurations. The following is an overview of the most common plasma cleaner.
Text_2

Läs mer »Nano

The NANO plasma cleaner are available in many different configurations. The following is an overview of the most common plasma cleaner.
Text_2

Läs mer »Tetra 30

The TETRA 30 plasma cleaner are available in many different configurations. The following is an overview of the most common plasma cleaners.
Text_2

Läs mer »Tetra 100

The TETRA 100 plasma cleaner are available in many different configurations. The following is an overview of the most common plasma cleaner.
Text_2

Läs mer »Tetra 150

The TETRA 150 plasma cleaner are available in many different configurations. The following is an overview of the most common plasma cleaner.
Text_2

Läs mer »Sputtersystem Tetra 8

The TETRA 8 plasma cleaner is configured with a sputtering system for high-vacuum-based coating technology and for cleaning processes in preparation of highly pure surfaces.


Basic configuration

– Body: W 610 mm x H 1,700 mm x D 800 mm

– Chamber


Text_2

Läs mer »Bell Jar 35

The Bell Jar 35 is a research plasma system developed for scientific experimentation. The system can be used for thermal evaporation, sputtering, electron beam evaporation, metal coating for SEM (scanning electron microscope) preparation, as well as for conventional plasma processes.
Text_2

Läs mer »Specialsystem

We build the plasma cleaner according to your needs.
Text_2

Läs mer »Tillbehör

The following accessories are available for the plasma systems.
