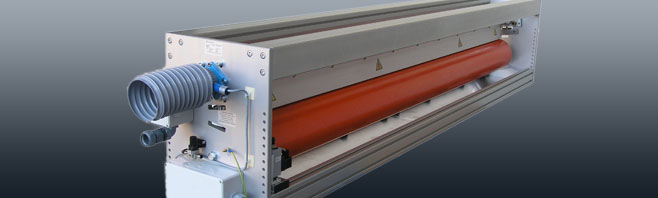

Foliestation ZX/ZY

The Folienstation ZX and ZY are easy to complete our stations to corona treatment of plastic and metal foils. The barrier discharge takes place in these systems with two or three electrode rods, which are in addition foldable pneumatically.

Tigres-folien_station_zx_zx



Detail Description

The power is adjustable, as is the treatment distance. The treatment roll employed has a diameter of 160mm and is made of either a silicone tube, extruded silicon, dielectric or conductive ceramic.

In addition, speed and exhaust air are electrically monitored.

Optionally the system can be configured for two or reciprocal treatment.

Specifications at a Glance
Connection 230V / 400V
Capacity 3KW +
working distance adjustable
Treatment width 600 – 4000 mm
Electrode Metal o. Ceramic
