Foliestation SKF

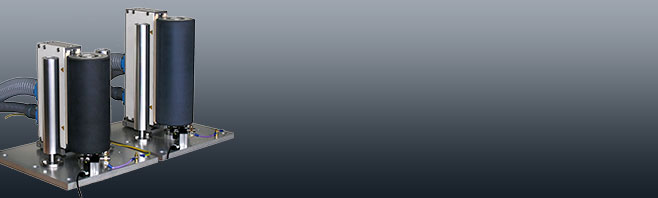

For Corona treatment of narrow foils the Foliestation SKF is an easy solution. The non-contact barrier discharge can be done either with two or three ceramic electrode rods. With the integrated Al-roller up to 200m plastic or metal foil can be treated per minute.

Tigres-folien_station_skf

Detail Desciption

The power is continuously adjustable. The integrated treatment rollers have a diameter of 100 mm and are coated with a ceramic wear protection layer. In addition, the SKF-station has an integrated speed monitoring.

Specifications at a Glance

Connection 230V / 400V
Capacity 600 – 1800 W
Working distance adjustable
Treatment width 200 – 600 mm
Electrode Ceramic
