Zepto – low-cost

2,6 litres laboratory low cost plasma cleaner ZEPTO with manual, PC and PCCE control is mainly used for:

  • small scale production
  • analysis (SEM, TEM)
  • medical technology
  • sterilisation
  • research and development
  • archaeology
  • textile treatment
  • semiconductor technology
  • plastic technology

Basic configuration

  • The outer body varies depending on the components / options
  • Chamber volume: depending on the version 1.7 – 2.6 liters
  • Power supply: 230 V AC

Vacuum chambers

  • Quartzglass (UHP)
    round with cover
    (approx. Ø 105 mm, L 200 mm or L 300 mm)
  • Borosilicate glass (UHP)
    round with cover
    (approx. Ø 95 mm, L 200 mm or L 300 mm)

Loading with

  • flat tray Aluminium, flat tray stainless steel,
    flat tray borosilicate glass, flat tray quartz glass

Electrodes

  • One or multi level electrode

Control

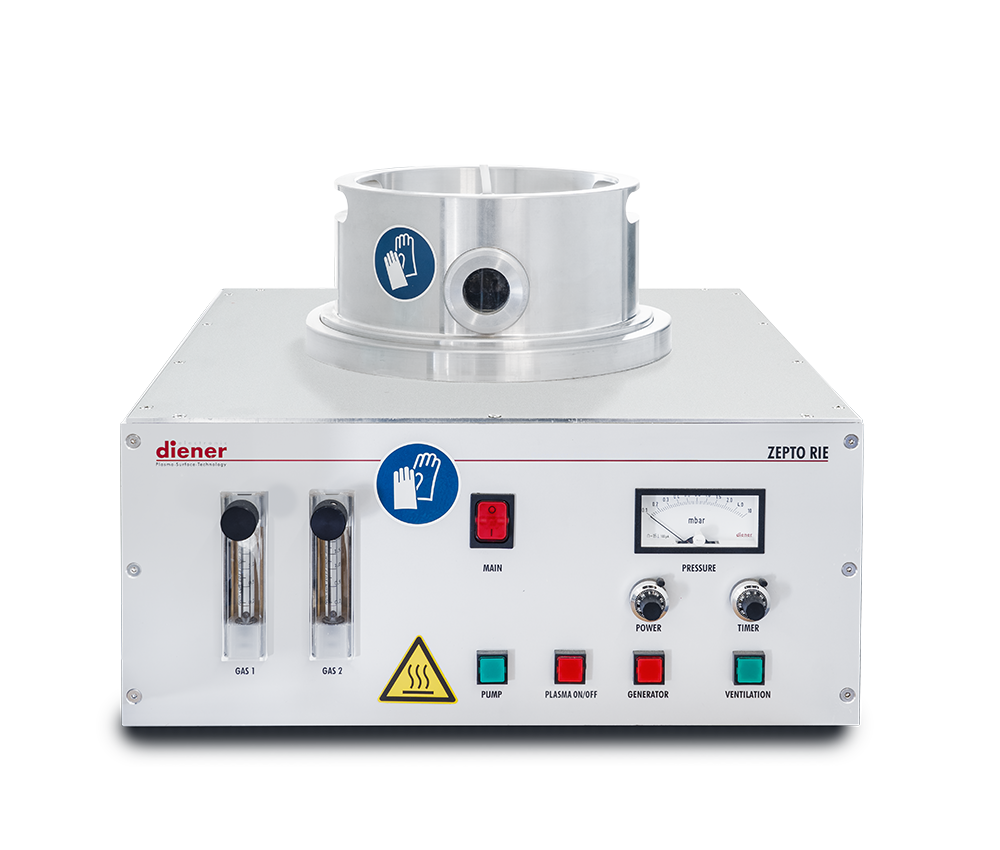

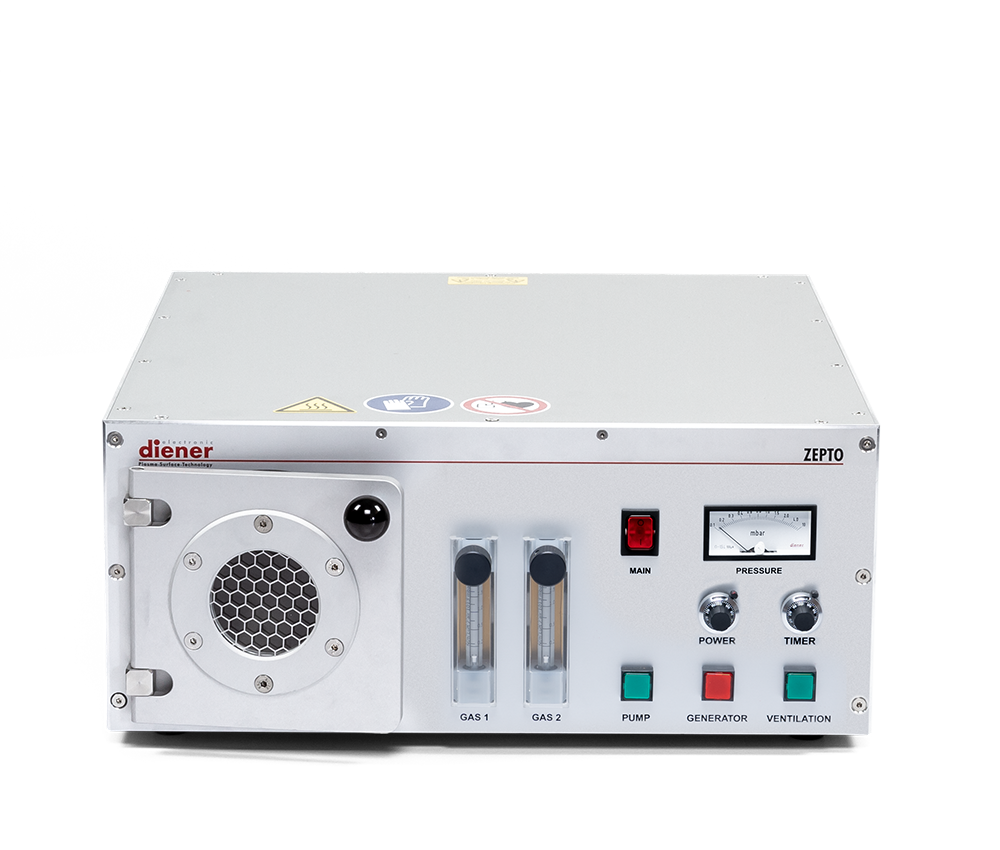

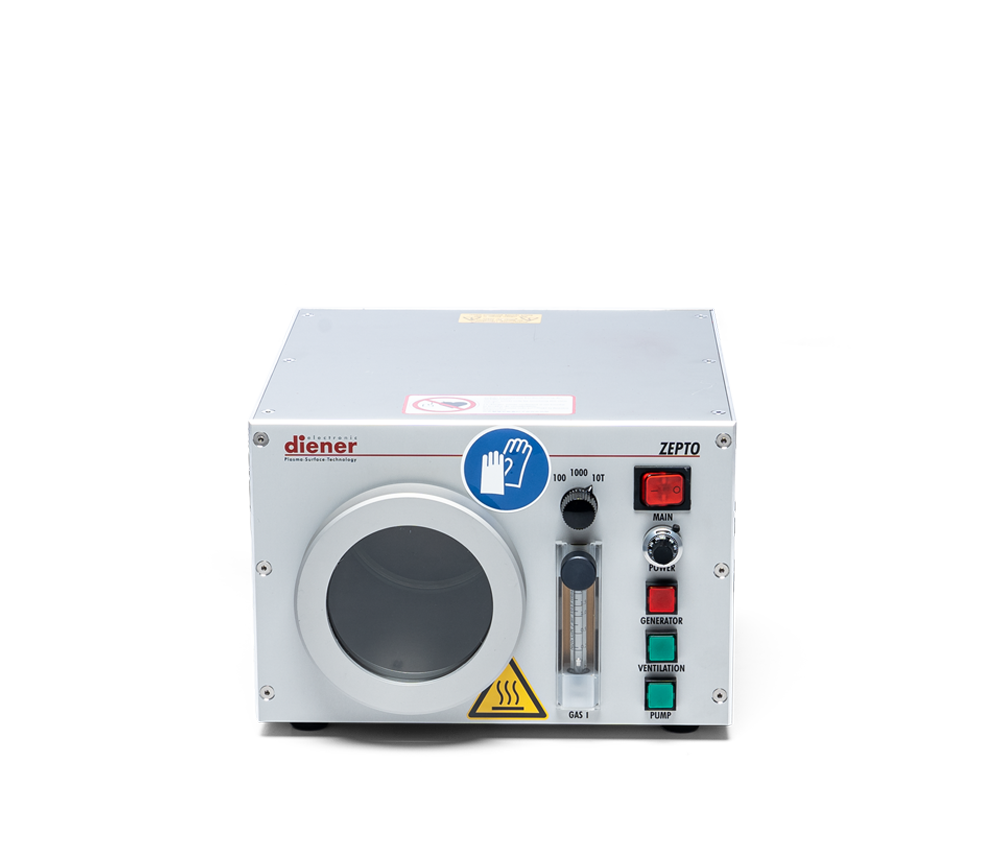

  • Manually
  • PCCE-Control (Microsoft Windows CE)

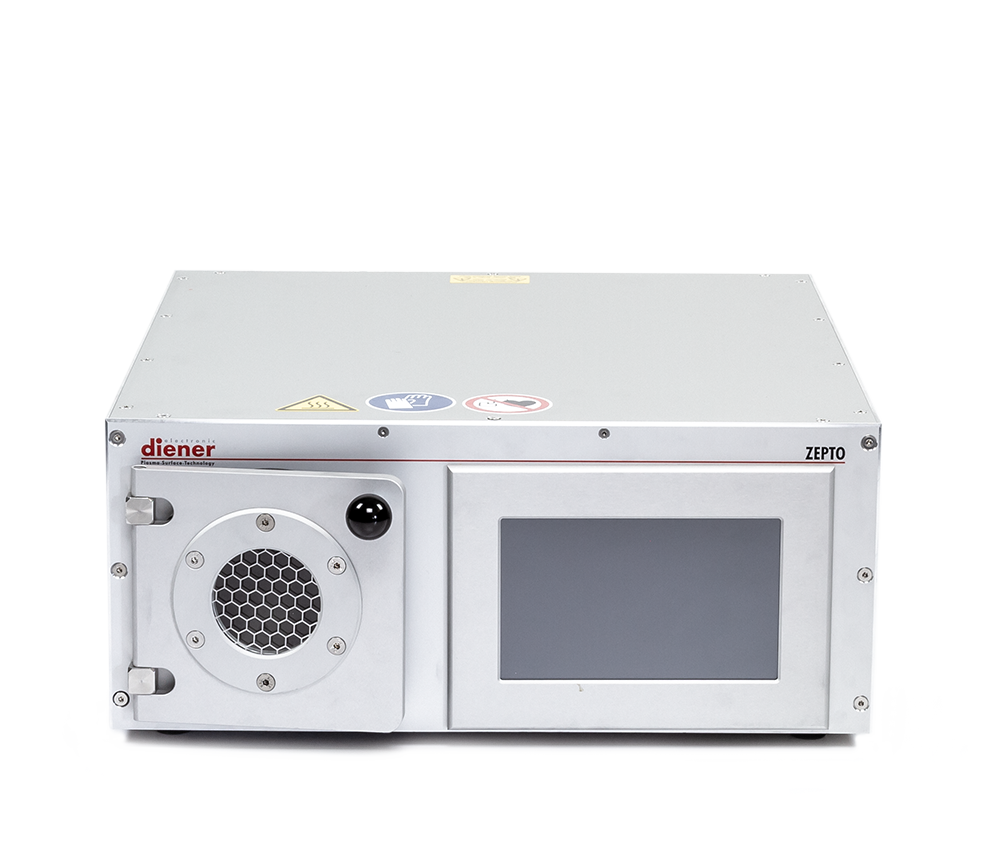

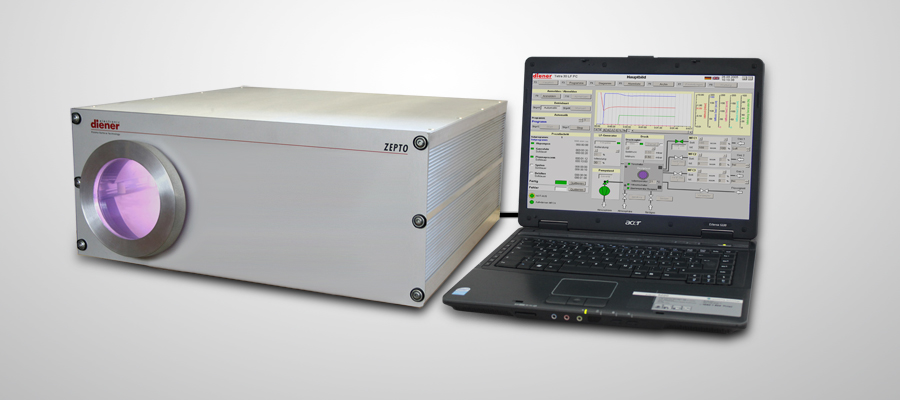

  • PC-Control (Microsoft Windows XPe)

Timer

  • Digital

Generator

Frequencies:

  • 40 kHz: Power 0 – 30 W; 0 – 100 W
    13,56 MHz: Power 0 – 50 W

Vacuum pump

  • in different sizes from different manufacturers
    (As required with active carbon filter)

More options

Spare parts sets, pressure gauge, corrosive gas version, gasbottle, pressure reducer, faraday box, polymerization equipment , test ink set, oxygen-generator, slow ventilation of the vacuum chamber, slow pump down of the vacuum chamber, maintenance / service, documentation in national language, installation on site.
