Pico

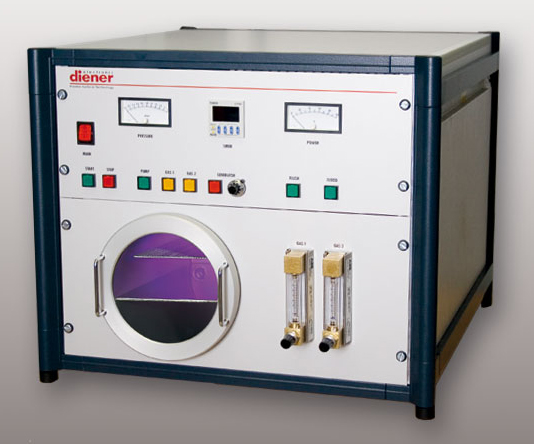

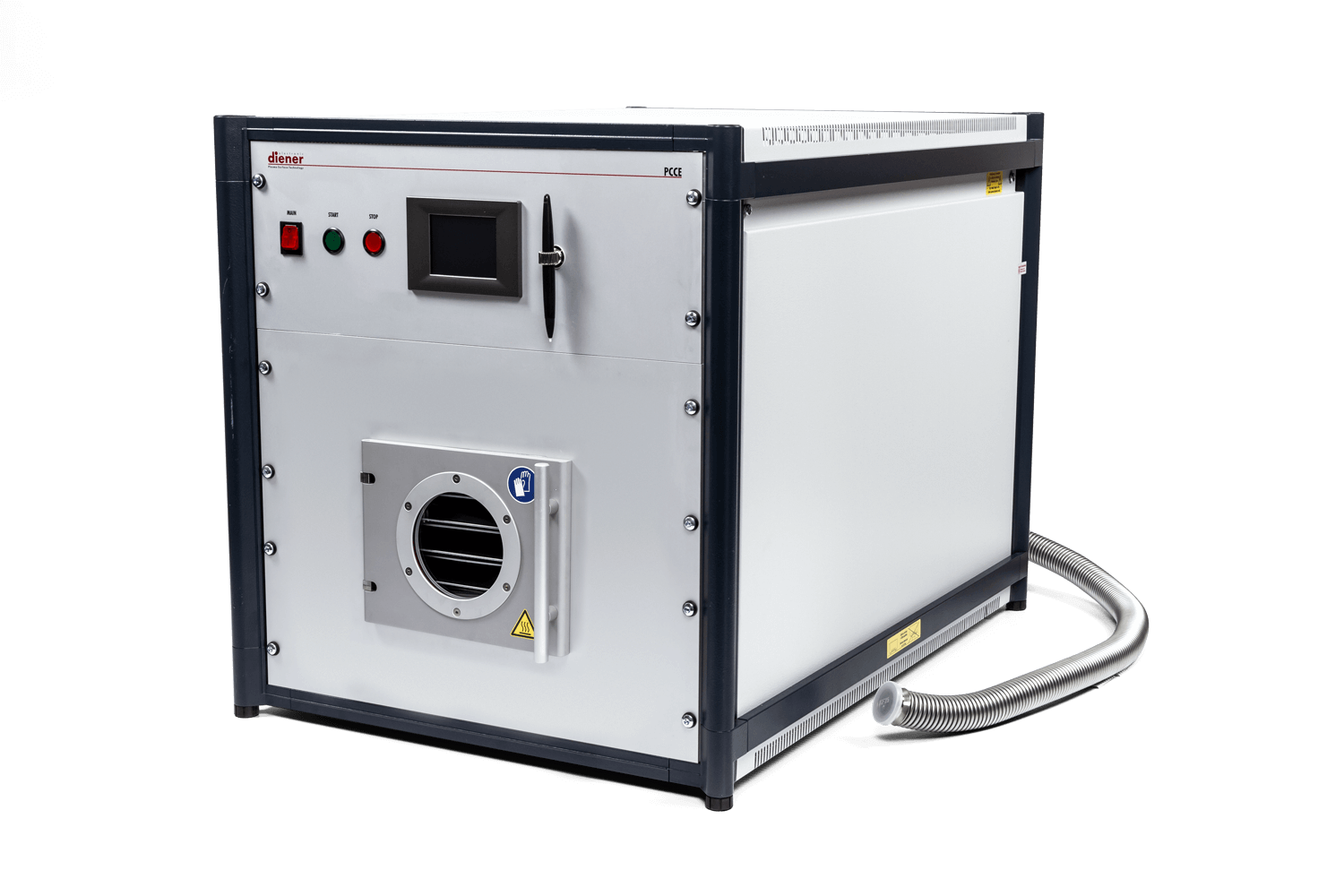

The PICO plasma cleaner are available in many different configurations. The following is an overview of the most common plasma cleaner.


Basic configuration

– The outer body varies depending on the components / options
– Chamber volume: depending on the version 4 – 15 liters
– Power supply: 230 V AC for table top systems or
400 V AC / 3 phases forstand alone systems


Gas supply

– Needle valve
– Mass-Flow-Controller (MFCs)


Vacuum chambers

Stainless steel
round with cover
(approx. Ø 150 mm, L 320mm or L 600 mm) or
rectangular with hinged door
(approx. W 160 x H 160 x D 325 mm or 600 mm)

Aluminium
round with cover or with hinged door
(approx. Ø 130 mm, L 300 mm or L 600 mm)

Quartzglass (UHP)
round with cover or with hinged door
(approx. Ø 130 mm, L 300 mm or L 600 mm)

Borosilicate glass (UHP)
round with cover or with hinged door
(approx. Ø 130 mm, L 300 mm or L 600 mm)




Loading with

Tray (option: water-cooled), quartz glass boat,
rotary drum for powder, rotary drum for bulk materials,
flat tray Aluminium, flat tray stainless steel,
flat tray borosilicate glass, flat tray quartz glass


Electrodes

– One or multi level electrode
– RIE – electrode


Control

– Semi automatic
– PCCE-Control (Microsoft Windows CE)
– PC-Control (Microsoft Windows XPE)


Pressure measurement

– Pirani sensor
– Baratron (for the corrosive gas version)


Timer

– Digital


Generator

Frequencies:
40 kHz: Power 0 – 200 W; 0 – 1000 W
13.56 MHz: Power 0 – 50 W; 0 – 100 W; 0 – 300 W
2.45 GHz: Power 0 – 300 W

All generators are continuously adjustable from 0 – 100%


Vacuum pump

– in different sizes from different manufacturers
(As required with active carbon filter)


More options

Spare parts sets, pressure gauge, corrosive gas version, gasbottle, pressure reducer, faraday box, polymerization equipment , test ink set, oxygen-generator, slow ventilation of the vacuum chamber, slow pump down of the vacuum chamber, maintenance / service, documentation in national language, installation on site.
