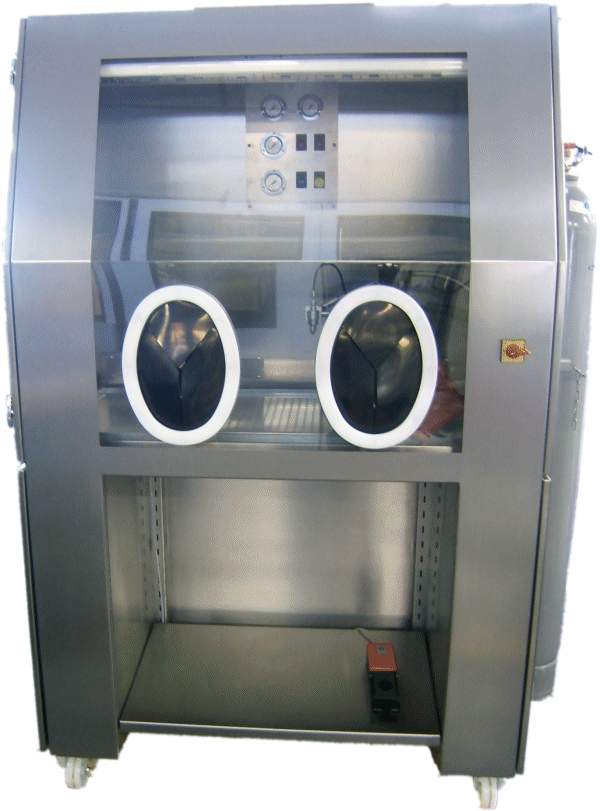

ACP JetStation
The JetStation is a stationary cleaning system based on the innovative acp CO2-Snow-Jet cleaning process.
The nozzle and process technology is individually adapted to the application and does only consume the amount of CO2 necessary to complete the task.
The JetStation cleaning system is easily equipped with a CO2-gas bottle, and is immediately ready to operate after being connected to the compressed air network through the quick connector.
The JetStation cleaning system includes the fully integrated process technology with extraction system and process monitoring. The cleaning system is ready to be used as a noise reduced hand-work place as well as a stationary workstation.
Specifications
| Dimensions | 2100 x 1200 x 800 mm |
| Empty weight | approx. 300 kg |
| CO2-supply | Standpipe bottle / fluid gas tank |
| CO2-fill capacity | 32 kg |
| CO2-consumption | 0,15 kg/min |
| Standard-capillary | Ø 0,35 mm |
| Compressed air | 6-10 bar 0,55-1,3 m³/min |
| Working pressure | Up to 16 bar |
| Hose connector | Compressed Ait Quick Connector NW 7,2 |
| Power supply | 400 V / 16 A |
| Housing material | Stainless steel |
Components
 |
The integrated CO2 Alarm sensor is used for ambient air monitoring. It permanently monitors the ambient air. If the CO2 concentration exceeds a specific value an alarm signal will be generated.
|
Accessories
 |
Heating system to treat the substrate. At this the jacketed jets of the nozzles are heated up while and after cleaning to protect the substrate from condensation.
|
 |
The ionised air system will increase the cleaning performance by reducing electrostatic charge of the part during cleaning. |
